These modules have 5 x 20 fuse holders on-board and are available with and without blown fuse indication. There are a select number of.

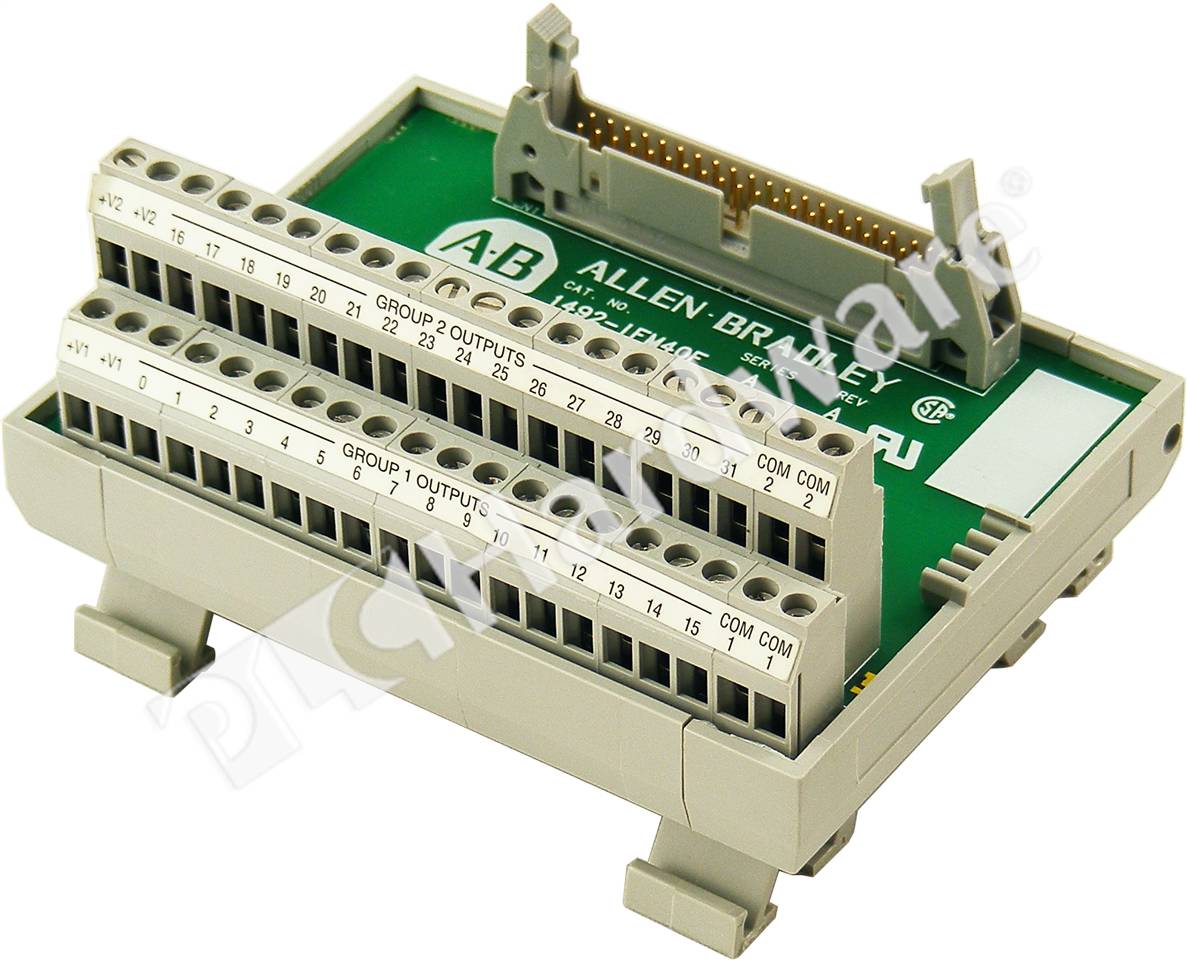

Plc Hardware Allen Bradley 1492 Ifm40f 40 Point Feed Through Digital Ifm

1492-IFM40F-F24D-2 9 472 x 327 x 278.

1492-ifm20f-fs24-2 wiring diagram. Blown fuse leakage current rating the wire off diagnostic function of the 1756-IB16D will not indicate a blown or removed fuse as a wire off condition. Publication 1492-TD008D-EN-P - January 2009 DigitalAnalog Programmable Controller Wiring Systems 81 1492-IFM20F-F24A-2 1492-RIFM20F-F24A-2 Fusible Extra Terminals with 24V ACDC Blown Fuse Indicators Application Notes 1. For Field-Side Wiring Diagrams refer to the Wiring System web site information on page 200.

Compatibility To ensure proper operation with the IO module do not exceed the voltage and current ratings of the IFM. Refer to 1770-41 and appropriate PLC IO module installation manual. Two 4-point isolated groups 1492-IFM20F-FS24A-4 with four terminalsinput and 24V ACDC blown fuse LED indicators 8 Individually isolated with 1492-IFM20F-FS120-2 extra terminals output and 120V ACDC blown fuse LED indicators 8.

2 Amps 12 Amps 0 C - 60 C Operating Temperature Range Plage tempratures de fonctionnement Betriebstemperaturbereich Limiti temperatura di. Fusing Fuse holders are included with the IFM. To obtain the wiring diagram you must select th Pre-Wired Cable Connector selection.

Wiring Refer to the Label Section on page 181. Wiring Refer to the Label Section on page 175. 1492-IFM20F-FS24-2 1030V ACDC 2 A 12 A 236 x 327 x 278 2 mA 46006-204-01 1492-IFM20F-FS24A-4 1030V ACDC 2 A 12 A 315 x 327 x 278 24 mA 46006-215-01.

1492-IFM20F-FS24-2 and nonisolated Cat. PN-28279 DIR 40063-335 Version 09 Printed in USA. 24 2 Blown Fuse LED 1492-IFM20F-FS24-2 A94 24.

Isolation The power bus fuse clips and blown fuse indicators are isolated into two groups of. Fuses 5 x 20 mm are not included. Fusible modules provide a convenient method of adding overcurrent protections into your programmable controller wiring.

Per IIO Description Fixed Terminal Block Removable Terminal Block RTB Plugs. Wiring Refer to the Label Section on page 174. Output 1492-IFM20F-FS-2 A94 120 2 Blown Fuse LED 1492-IFM20F-FS120-2 A94 Digital IFMs and Cables for Bulletin 1794 Flex IO 16-Point and 32-Point Modules Voltage V Term.

Dimensions Refer to page 181. 1492-IFM20F-FS24-2 1030V ACDC 236 x 327 x 278 2 46006-204-01 1492-IFM20F-FS24A-4 1030V ACDC 315 x 327 x 278 24 46006-215-01. Maximum number of the same gauge of wire stranded copper conductors allowed per wire funnel Figure 1 Push-in RTB Plug Specifications General Wiring System Specifications.

Bulletin 1492 Programmable Controller Wiring Systems 12-160 Specifications 0 1 2 3 4 5 6 7 8 9 10 11 12 13 Digital IFM Specifications Digital IFM Cat. Fusing Fuse holders are included with the IFM. Refer to page 186.

DigitalAnalog Programmable Controller Wiring Systems. For Field-Side Wiring Diagrams refer to the Wiring System web site information on page 200. 1492-IFM20F-FS24-2 1492-IFM20F-FS120-2 ONLY 10 3 5 15 17 20 B1 B2 B3 B8 B9 B10 1 2 A1 A2 4 A3 6 A4 8 A5 12 A6 14 A7 16 A8 18 A9 19 A10.

Wiring Cblage Verdrahtung Cablaggio Cableado Reference Publications. Pinout 2 11 B1 B2. 18 19 20.

Isolation The fuse clips and blown fuse indicators are isolated into 16 groups of terminals. Pinout 1 2 3 A1 A2 A3. Compatibility To ensure proper operation with the IO module do not exceed the voltage and current ratings of the IFM.

For Field-Side Wiring Diagrams refer to the Wiring System web site information on page 186. Academiaedu is a platform for academics to share research papers. Compatibility To ensure proper operation with.

Fuses 5 x 20 mm are not included.
