29 12v. Seeing one in action at our recent club contest station inspired me to dust it off and put it to work.

Discussion Dps 600pb Builds Hints Tips And Build Plans Rc Groups

One end goes to the 1st PS GND output and the other end goes to the 2nd PS 12V output.

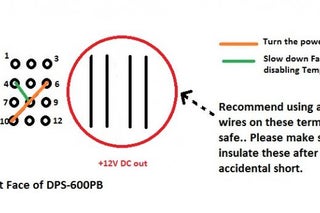

Dps 600pb wiring diagram. When I first built my dual DPS 600PB supply I added a switch in a similar way. The pins in the case of the DPS-600PB go across from the top left left to right as one two threenext level down goes four five sixnext level is seven eight ninethen finally ten eleven twelve. 13 points to where a pair of these PSs are installed.

4 5v. Perfect for parallel running - no need for tuning the voltages so that they match. 6 -12v.

The AC input and DC output connectors are located on the side of the supply opposite the side where the handle is located. This power supply is a DPS-600PB B which supplies 575WMax Its input is 100-240V so good to use in many places and can be found on ebay with ease and only costs 15-30 each. 1000w Power Supply Using 2 Dps-600pb Affordable Dependable Powerful.

5 PS_KILL Connect to ground. Dps 600pb Build Procedure For Rc Power Supply 15v 2a Dc Regulated Power Supply Manufacturer Led Display Signal Agenda Introduction To Circuits Building A Simple Circuit Ppt An Introduction To Ground Earth Ground Common Ground Analog Ditek Dtk 3gtp 3 Outlet With Ground Terminal 30v 5a 110v 220v Switch Variable Dc Power Supply W Clip Cable. You can make a 27V 2600W PSU small and light if you wanted to - I prefer bigger and fully optioned.

Connect the lead of your ohmmeter to the positive output contact on the output edge connector. I used an HP DPS-600PB unit 15 delivered from ebay used in the ProLiant DL380 G4 Rack Servers. Im in the process of obtaining the parts to create my own parallel DPS600PB supply this is actually for supplying power while programming BMWMini cars.

Im here because of the write up on the DPS600PB here. Why I chose the DPS-600PB. It was easier and safer to have the switch on the AC input side and you already have such a switch on the wall socket.

It worked as advertised but I ended up removing it though because I found it a bit pointless. Now you can adjust the output voltage with the top right potentiometer to max 1362V. Remember the wires should match the pin diagram back at the start - the top connector should have two wires in it.

This wire is actually quite long and you will be able to lift the main board out and place it right next to the chassis with the LED wire still attached. I chose this model based on some threads from the RC guys out there. Its some time since I purchased an HPS 600PB PSU 12V 47A power supply for about 25 from ARNSW.

Its about the same size as four DPS-600PB supplies stacked two wide and two long. The last step was to solder a wire to each of the banana plugs terminate them in male 4mm bullets and then plug them into the remaining two outputs. The pinout for the top side of the PCB is as follows.

Rather than necro an old thread I thought it best to start my own. 7 PS_ENABLE Connect to ground. View attachment 19485 I wish I could take credit for the picture but I cant find the person that originally posted it.

Change 9K09 resistor on the right of the three potentiometers on the piggyback controller board to 10k. As standard the PSU outputs 124v and is rated at up to 47 amps. Connect the current share pins and they share 50 load precisely see below You can make a 27V 1300W PSU small and light.

It is rated at 575W or 47A at 12V. A video showing how to modify your PSU to run quieter. The tutorial will be a slow burn as I need to think about how Ill make the electrical hook-ups as the power connections are all designed to take interface with bespoke server hot swap connectors.

DPS Power Supply Specification V20 - 10 - 4 General This specification describes the requirements for power supply that provides a minimum of 1200 W at 200-240 VAC. 1 10 ground. With the other lead probe each header pin that connects to the daughter card until you measure zero ohms on one of the pins.

First of all to those in the PC Power Supply for DC Charger. Out of the box these units are equipped with a hot swap connector that hooks up to the server. For HP 280127 there are no interlocks.

This is the pin that sends the output voltage 12V feedback to the PWM controller. He found a way to modify the HP DPS-460EB A see below to output 135V instead of 12V. 3 33v.

Do consider adding in what gauge wire has been. HP DPS-600PB 12V24V 47A 1150W Power Supply Build Thread 19-01-2013 0128 AM. The HP server power supply popular with hams and radio control fans.

The conversion was fairly straight-forward as all the info I needed was already out there. You can do a quick and dirty mod just shorting a couple pins to turn it on then solder your favorite connector to the 12V and GND blades. Thread Im really sorry this took so long.

Adapting an HP computer power supply for ham radio use. 26 rows DPS-600PB - Service Manual free downloadschematicsdatasheetseeprom binspcbrepair. I bought an modified an HP DPS-600PB supply.

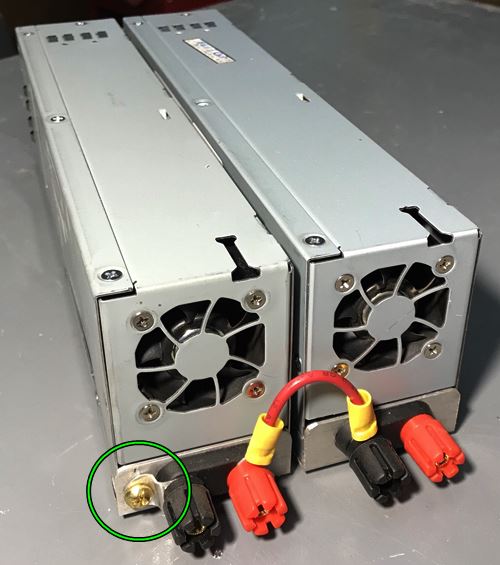

I chose to use an HP model DPS-600PB series ESP135 PS that is used in ProLiant DL380 G4 Rack Servers. The other output of each PS was then connected to the banana plugs.
